kgoedecke/doop

Doop is the open-source alternative to Paper.design — a multiplayer design canvas for humans and AI agents. Every design lives on a shareable Canvas (/c/<id>) holding Frames — artboards that render real HTML in sandboxed iframes. People edit in the browser; AI agents edit through the built-in MCP server, streaming their designs in live. Everyone sees everything as it happens: cursors, presence, frame edits, agent status, and an activity feed.

Think of it as Claude Design for whichever agent you already use: Claude Code, Codex, ChatGPT, Cursor, OpenCode or any other MCP client designs on the same canvas, and the built-in Doop Agent runs on GPT, Claude, Gemini, DeepSeek, Kimi or Qwen models (every agent and model).

• Design with agents, not prompts-and-refresh — connect Claude Code (or any MCP client) once, then watch it sketch, stream and self-review designs on your canvas, next to your cursor.
• A built-in Doop Agent — queue a card or @mention a role and it designs on its own, no client to connect. Runs on the server's ANTHROPIC_API_KEY for a handful of free tasks, then on the ChatGPT subscription (or OpenAI key) each user connects (setup); the first-canvas welcome performance is scripted and runs without any of it.
• Pages within a canvas — organize frames into named pages from the Layers panel. Add, rename, drag to reorder, double-click to rename, or right-click to rename and delete empty pages. Page edits support Undo/Redo; selected frames can move between pages. Agents can list pages with get_canvas, manage them with set_canvas_pages (passing the original list as expectedPages to protect collaborators), and target frames with pageId.
• Clickable prototypes — wire elements to other frames (click, hover, press, key or delay; navigate, overlay, back, scroll or link, with transitions) in Prototype mode or straight in the HTML, then click through the flow with Play or share /c/<id>/proto. Agents use the same data-doop-* attributes plus get_prototype / set_prototype_start.
• True multiplayer — live cursors, presence, per-frame editing indicators, undo/redo, comments pinned to elements, and an activity feed, all over one WebSocket room.
• Design memory — pin exemplar frames, capture decisions, and let the distiller propose durable style rules that every agent follows.
• Private by default — invite collaborators by email or flip on link sharing per canvas; agents inherit exactly their human's access.
• Self-host in one command — docker compose up, or bun run dev with zero configuration (embedded Postgres, no external services required).

Doop isn't tied to one model vendor. Every agent below designs through the same MCP server, works as the person who connected it, and shows up live on the canvas with its own cursor, status and tasks. Connect AI in the top bar walks you through each one.

No agent of your own? The built-in Doop Agent runs on the model account you connect: a ChatGPT subscription, or an OpenAI, Claude, Gemini or OpenRouter key. OpenRouter brings DeepSeek, Kimi, Qwen, GLM and MiniMax (details).

git clone https://github.com/kgoedecke/doop && cd doop
bun install
bun run dev

Doop builds and installs with bun (bun.lock is the only lockfile); the server itself runs on Node.

• Web app: http://localhost:4300
• API + WebSocket + MCP server: http://localhost:4400 (the web port proxies /api, /ws, /mcp to it)

Everything works with no configuration: data persists to an embedded Postgres (PGlite) in data/pg, and every optional integration (SMTP, stock photos, object storage, analytics) degrades gracefully until its variable in .env.example is set. The one you will most likely want is ANTHROPIC_API_KEY, which turns on the built-in Doop Agent — agents you connect yourself over MCP need no key.

Or self-host the production build with Docker:

BETTER_AUTH_SECRET=$(openssl rand -hex 32) docker compose up -d   # app + Postgres on :4400

Production build without Docker: bun run build && bun run start (single server on :4400 serving everything). Set DATABASE_URL to use a real Postgres — same code path as PGlite.

Prefer not to run anything? doop.design is the hosted version.

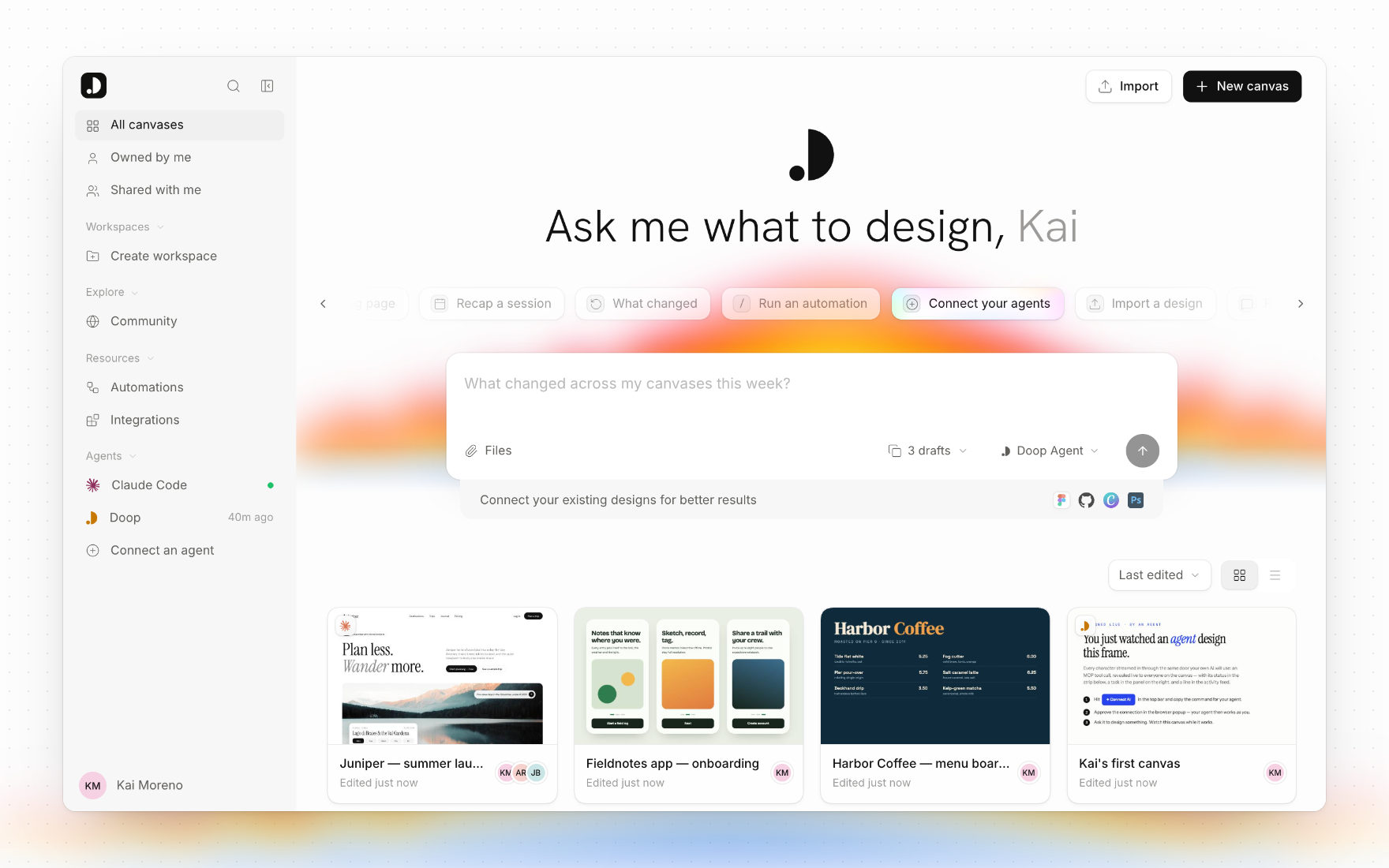

Once you sign in, Home is where you start: describe what you want and Doop makes a canvas with drafts queued for the Doop Agent, or pick up one of your canvases, workspaces and connected agents.

The canvas Chat tab keeps a shared conversation alongside the design. Mention an agent role to queue a design card; its reply threads back into the chat.

The import source picker offers Website, Live app (the sync snippet), and GitHub repo. Right-click a frame and choose Export… to download PNG, JPG or a vector PDF (of the frame, or of every selected frame as one PDF). Export in the top bar binds any frames of the page into one PDF. A progress toast tracks the render; the desktop app opens its native save panel.

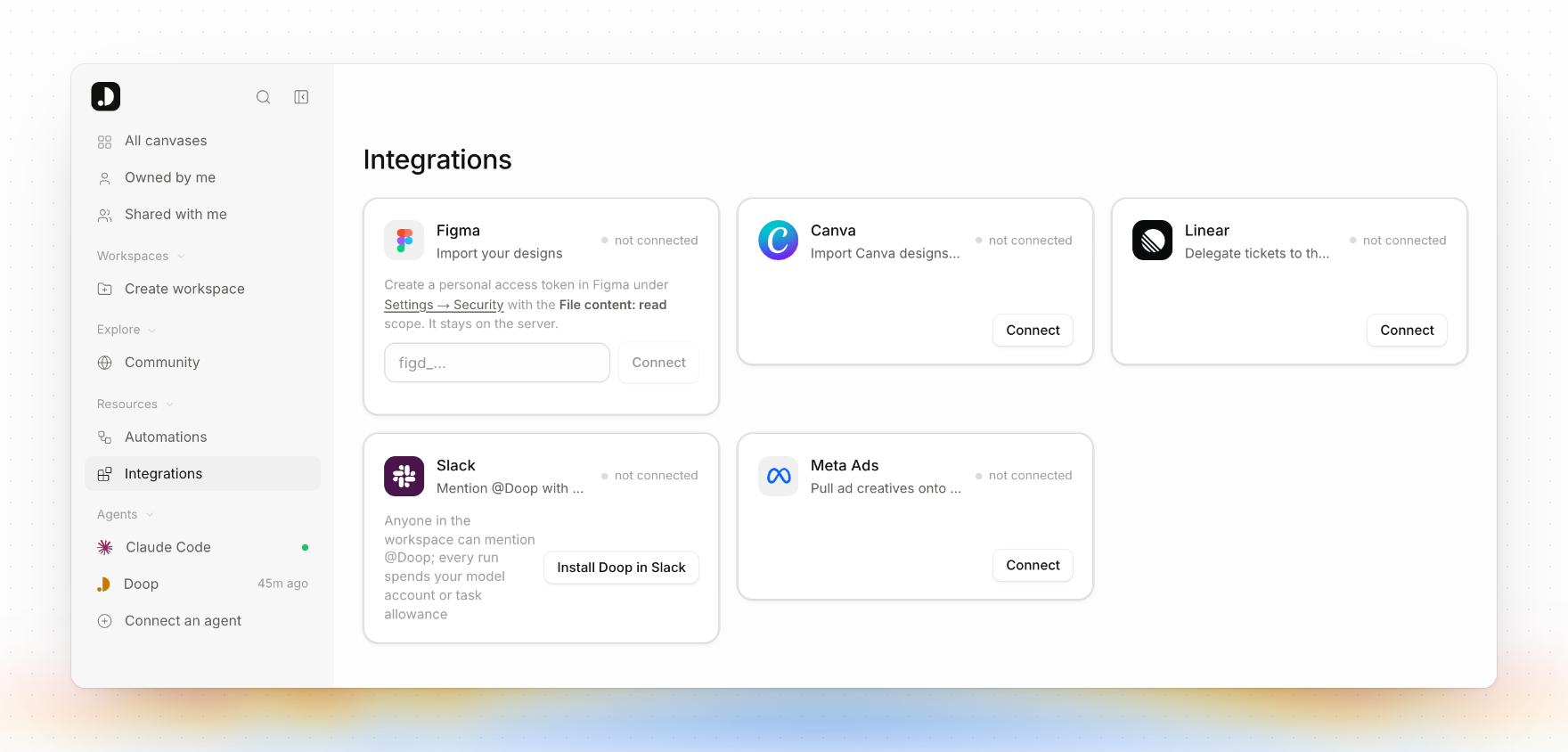

Integrations in the rail is where an account connects the outside tools Doop works with:

To reference a specific element in feedback, select it and choose Copy link in its floating toolbar, or right-click its Layers row and choose Copy link to element. Opening the link selects the element and opens its properties on the correct page. The URL includes the canvas ID, frame ID and URL-encoded CSS selector, so an AI agent can locate it in the frame HTML. Canvas access rules still apply. Selectors that use element IDs survive layout changes; selectors based on sibling positions can change when the HTML is restructured.

Select a frame and turn on Development → Mark as approved in the inspector, or right-click one or more frames and choose Mark ready for dev. A green badge appears above the screen and in Layers. Hover the toggle row or a badge to see who approved it and when. Turn the toggle off to move an approved screen back to draft.

Changing the HTML or frame dimensions switches an approved screen to Needs review; review it and turn Mark as approved on again. Moving, renaming, hiding, locking, or moving between pages keeps approval. Copies start as drafts. An approval checks the frame revision so a concurrent edit cannot accidentally be approved, and waits for live design streams to finish.

Agents can read approvalStatus (draft, ready_for_dev, needs_review) and approval attribution in get_canvas and get_frame. Call get_canvas({ canvas_id, approval_status: "ready_for_dev" }) to find approved screens, then re-read get_frame before implementing. Only ready_for_dev is current sign-off. Approval is set by people in the app. In Automations, choose Designs are approved to run a workflow when frames on a selected canvas become ready for dev. Without an enabled workflow, approval only records sign-off.

The REST equivalent is PUT /api/frames/:id/approval with { status: "ready_for_dev" | "draft", expectedUpdatedAt }. The signed-in user's identity supplies the attribution; the endpoint uses the same canvas access rules as editing and returns 409 when the reviewed revision is stale.

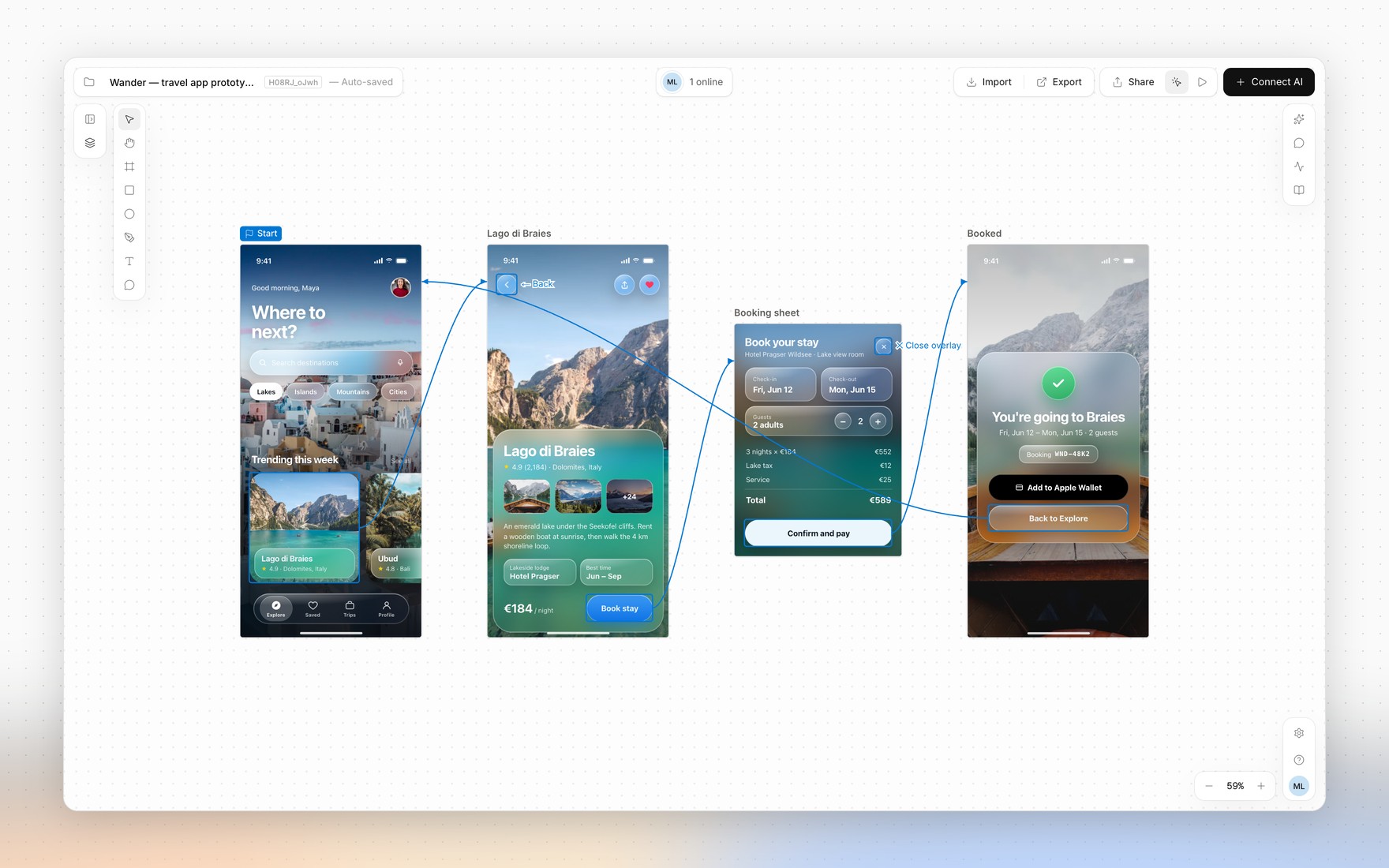

Turn frames into a flow you can click through. Switch on Prototype mode (top bar), pick an element and add an interaction in its Prototype tab, or drag the handle on its right edge onto another frame. Each interaction is a trigger (click, hover, press, a key or a delay) and an action (go to a frame, open one as an overlay, go back, close the overlay, scroll, open a link), with an optional transition: dissolve, slide or push. Connectors on the canvas show where every element leads, and a Start flag marks the frame each page's flow begins on.

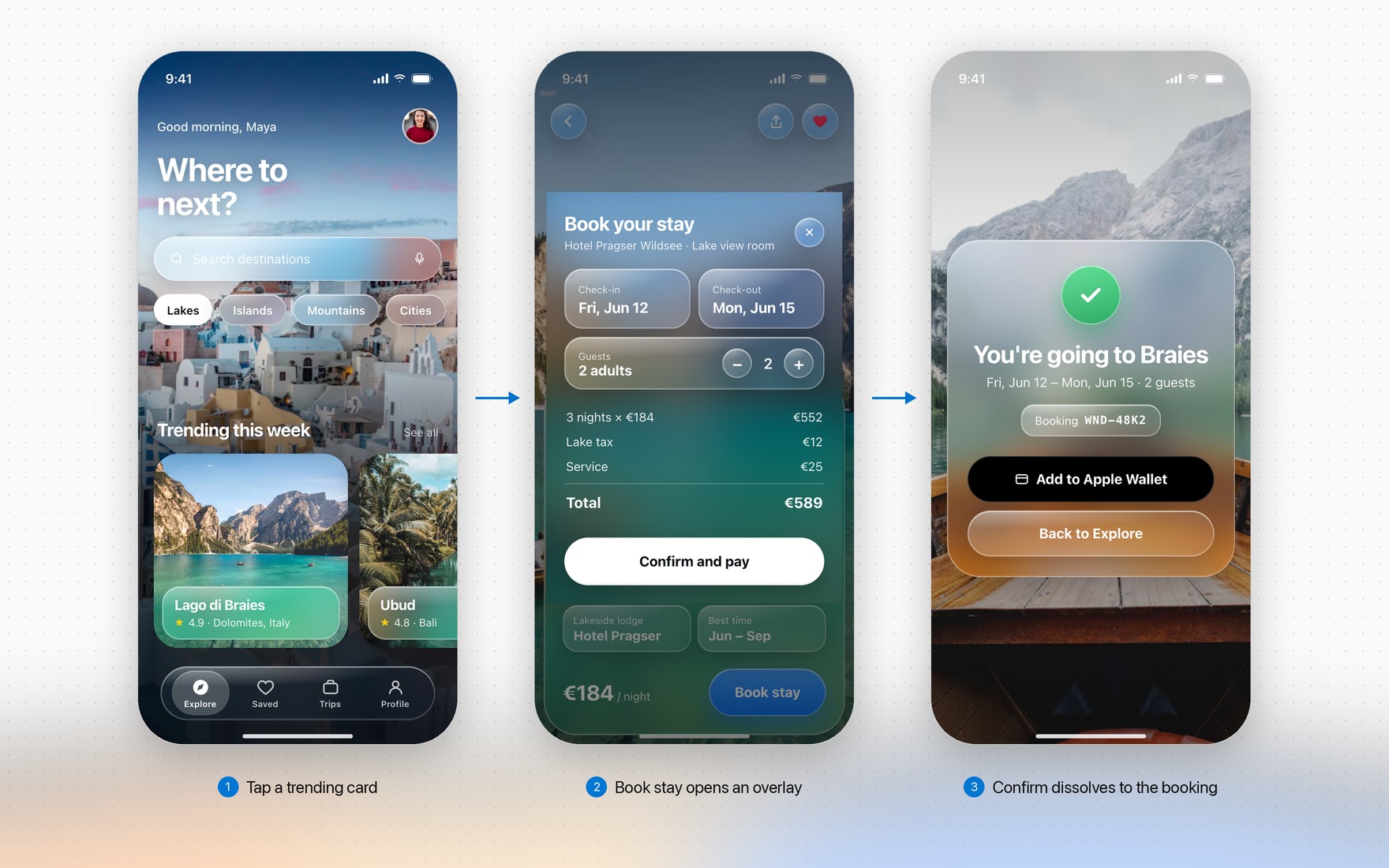

Press Play to run it full screen, or share /c/<canvas-id>/proto: the player follows the same canvas access rules, and the browser's Back and Forward walk the flow. Frames stay live while you play, so an edit on the canvas shows up on the screen you are looking at.

Interactions are plain attributes on the element in the frame HTML, so they sync, version and export with the frame, and agents write them with the same tools they design with:

<button data-doop-on="click" data-doop-action="navigate:<frameId>" data-doop-transition="push-left">Book stay</button>

Agents check their wiring with get_prototype, which flags links to missing frames, and set the start with set_prototype_start. Both the MCP server and the built-in Doop Agent have them. The full attribute reference is in .context/specs/prototyping.md.

The SwiftUI iOS app lives in ios/. Open ios/Doop.xcodeproj in Xcode to run it against Doop Cloud or your own HTTPS server. It uses SwiftUI for the app interface and a native canvas that renders frames with the Blitz HTML/CSS engine (Rust, no WebKit), over the same REST API and WebSocket rooms. The app is in development; see the iOS README for validation status and remaining release requirements.

Choose Connect AI → Claude → Add to Claude. On hosted Doop, this opens Claude's connector form with Doop's name and server URL filled in. Confirm it, sign in to Doop, then start a new Claude chat and paste the canvas prompt from the dialog. No file download, terminal or API key needed.

The updated Doop desktop app also offers Add to Claude for local and self-hosted servers: it opens Claude Desktop's extension installer directly, with your server URL filled in. Confirm the installation in Claude and approve the Doop sign-in. The online connector needs a publicly reachable HTTPS server; localhost connections use the desktop app. Manual extension installation remains available as a fallback. Build and installation details: claude-extension/.

One command connects Claude Code (or any MCP client) to your canvas:

claude mcp add --transport http doop http://localhost:4300/mcp

That triggers the standard MCP OAuth flow — a browser window opens, you approve, and from then on the agent works as you. Ask it to design something on your canvas id and watch it happen live. Everything in this shot is the real flow: Claude Code announced itself with set_status, created a frame, and is streaming the pricing section in — presence avatar, "for Kai Moreno" attribution, the frame chip, the working strip, and the task in the Agents panel.

The first canvas after signup comes with a performance: the Doop Agent streams a welcome design in while you watch — status in the working strip, a task in the panel, a pulsing border on the frame it's building.

That welcome performance is scripted (server/demo.ts) — a pre-authored frame replayed through the same machinery real agents use, so it runs with no configuration at all. The Doop Agent proper needs a key.

Doop ships a built-in design team that lives in the server and picks work up on its own: queue a board card, @mention a role on an element comment, or leave feedback on a task, and it runs without a human in the loop. Roles (Doop builds; specialists own one pass each — UX, copy, brand, accessibility) are defined in shared/agents.ts, and a card can be routed through several in order.

The server pays for the free tier, on Anthropic by default:

ANTHROPIC_API_KEY=sk-ant-...   # in .env, or the environment of your deployment

Same key gates the guideline distiller (server/distill.ts), which proposes durable style rules from your canvas.

The free tier can run on Azure OpenAI instead — useful when your organisation's credits or compliance rules live there:

DOOP_AGENT_PROVIDER=azure
AZURE_OPENAI_ENDPOINT=https://my-resource.openai.azure.com
AZURE_OPENAI_API_KEY=...
AZURE_OPENAI_DEPLOYMENT=my-deployment

The distiller stays on ANTHROPIC_API_KEY either way and quietly turns off without it.

When a user's RESIDENT_TASK_LIMIT free tasks are gone, they don't lose the agent — they connect a model account and the Doop Agent keeps running on it. A connected account takes over immediately, from the very next task: the free tier is a trial that gets people here, not a balance to spend down first, and connecting stops costing the server anything from that moment. The connection is account-level, so it lives at /settings (Home → Settings); the free-tier wall links there rather than carrying its own copy, and "Connect an AI agent" on a canvas stays about MCP clients only. Six kinds of account:

• ChatGPT subscription — OAuth against auth.openai.com, then inference through the Codex backend that Plus/Pro/Business plans include. Tokens live in model_accounts and never reach a browser.
• OpenAI API key — pay-as-you-go on the user's own OpenAI account, no subscription involved.
• OpenRouter API key — one key for a curated multi-vendor roster: Kimi, Qwen, GLM, DeepSeek, MiniMax, MiMo and Gemini Flash (the menu lives in shared/modelMenu.ts). Models without image input still work, in a degraded mode: the agent skips screenshot review, verifies through the frame HTML instead, and the picker labels them "no visual review".
• Gemini API key — Google's Gemini models through their OpenAI-compatible endpoint, plus Nano Banana image generation.
• Gemini cloud pilot — an operator-managed prototype running the official Gemini CLI in an isolated worker using Google sign-in. Disabled by default; see the pilot setup and verification guide.
• Claude API key — pay-as-you-go on the user's own Anthropic account.

The ChatGPT, OpenAI, Claude and Gemini kinds get their model menu from the provider's own catalog, asked with that account's credential when the picker opens (server/modelCatalog.ts, GET /api/model-account/models): the Codex backend's catalog for a ChatGPT subscription (the same list the Codex CLI reads, asked as CHATGPT_CODEX_CLIENT_VERSION), OpenAI's and Anthropic's /v1/models, Gemini's /v1beta/models. A newly released model is on the menu without an upgrade; the curated entries above sit on top as recommendations, a curated tier the account cannot run is left off, and the curated menu alone is served if the provider cannot be reached. OpenRouter stays on its curated roster, whose hand-checked vision flags are what the run relies on.

Azure OpenAI is deliberately not a connectable account kind, and the OpenRouter/Gemini endpoints are fixed constants: a user-supplied endpoint would be a URL the server fetches with the run's full context — an SSRF vector — so custom endpoints stay server-level configuration only.

Either way the user picks their model tier in Settings from that provider's curated menu — on OpenAI, gpt-6-astra (the newest flagship; on a ChatGPT subscription it needs Plus or better and OpenAI is still rolling it out per account), gpt-5.6-sol (flagship), gpt-5.6-terra (the default workhorse) or gpt-5.6-luna (cheap and fast). They are paying for it, so the choice is theirs; DOOP_AGENT_OPENAI_MODEL, DOOP_AGENT_OPENROUTER_MODEL and DOOP_AGENT_GEMINI_MODEL only set the default they start on. Note that gpt-5.4 and gpt-5.4-mini retire from ChatGPT-authenticated Codex on 31 August 2026, so pinning a 5.4 id via that env var will break the subscription path after that date.

OpenAI registers no redirect URI for a hosted app, so connecting ChatGPT takes one of three shapes and Doop picks the cheapest one available:

The device flow needs device code authorization switched on in ChatGPT → Settings → Security (workspace members need an admin to allow it) — that is why the loopback flow, which needs no setting at all, stays the default when Doop is local. All three end at the same server-side PKCE exchange.

Before you turn this on for real users: driving a ChatGPT subscription from a third-party server is not something OpenAI's terms sanction, and heavy use can get an account rate-limited or suspended. The API-key path is the fully supported alternative and shares all the same code. CHATGPT_CONNECT_DISABLED=1 switches the subscription path off and leaves the key path.

Runs are attributed to the human whose card, comment or feedback they picked up, so the person who asked for the work is the person whose account runs it. The translation between the agent's Anthropic-shaped loop and OpenAI's Responses API lives in server/openaiAgent.ts; which credential a run gets is decided in server/agentModel.ts.

With no server key and no connected account the Doop Agent is off, and it fails quietly by design — queued cards and @mentions simply wait for some agent to claim them. The startup banner tells you which state you're in.

All of this is separate from connecting your own agent. Claude Code and any other MCP client authenticate over OAuth and drive the canvas from outside, on your own subscription — never metered. Three paths, same canvas: the Doop Agent on our key (free tier), the Doop Agent on your key, or your own agent over MCP.

RESIDENT_TASK_LIMIT is the free-tier meter. By default it is 0: the Doop Agent only runs once the user connects a model account (their ChatGPT subscription or an OpenAI key) — a connected account is never metered. Connecting your own MCP agent does not lift the meter: it runs on your model when it designs, but resident tasks still bill a credential. Set the limit above 0 to grant that many free tasks on the server's key; everything that triggers resident work counts, including feedback and retries. There is no "unlimited" value: self-hosting with your own key, set it to a large number, since you're paying Anthropic directly either way.

The web app requires an account (better-auth, email/password — open signup). Your account name is your identity everywhere: cursors, presence, the activity feed, and feedback attribution are all server-authoritative from the session, and the WebSocket rejects unauthenticated joins. Canvases are private by default, Figma-style: only the owner and people they invite (Share → invite by email, existing doop accounts) can open one. The Share modal can also turn on link sharing per canvas ("anyone with the link can edit"), which restores drop-a-link collaboration for that canvas. Your home screen lists your own canvases plus ones shared with you (plus unowned legacy ones, claimable there). Agents connected over MCP act under the account that approved them and get exactly that user's access.

With SMTP configured (SMTP_HOST etc. — see .env.example), signups require email verification and "forgot password" sends real reset links. Without it, signup stays open and every email is printed to the server log, links included — the flows still work in development.

Set SIGNUP_EMAIL_DOMAINS=jointhetroops.com to restrict new accounts to one email domain, or use a comma-separated list for several domains. Matching is case-insensitive and exact; existing accounts are unaffected. Leave it unset to keep public signup open.

Set REQUIRE_EMAIL_VERIFICATION=false to let people in before they verify — the link is still emailed, it just stops gating sign-in. Admin promotion is deliberately not part of that trade: ADMIN_EMAILS only ever promotes a verified address (see below).

If signup or password reset hangs rather than failing, the cause is almost always a host that blocks outbound SMTP: Railway and most PaaS block 25/465/587. Resend also serves 2465/2587, so SMTP_PORT=2587 is the usual fix.

Env: BETTER_AUTH_SECRET (required in production), TRUSTED_ORIGINS (comma-separated, defaults to the localhost dev origins).

A workspace is a team's shared home for canvases: everyone in it opens every canvas inside, with no per-canvas invites. Create one from the sidebar on the home screen, invite people by email (existing accounts join at once; anyone else joins the moment they sign up with that address), file canvases in it from the Share modal or the canvas menu ("Move to workspace…"), and manage people, roles (owner / admin / member) and billing at /w/<id>. Agents see workspace canvases in list_canvases and can create into one with create_canvas's workspace_id.

Workspaces are the paid part of doop on a hosted deployment. Plans (see shared/billing.ts):

Self-hosting: billing is off unless you turn it on. Without STRIPE_SECRET_KEY every workspace is active and nothing is locked. With it, a workspace must hold a live per-seat subscription before it can grow — create canvases in it, invite people, take canvases in — and the upgrade modal appears wherever that is attempted. Canvases already in a workspace stay open to its members whatever the subscription does (a failed card never locks a team out of its work). Deleting a workspace hands every canvas back to its owner's personal space and cancels the subscription.

To enable billing: create the product and prices with node scripts/stripe-setup.mjs (prints STRIPE_PRICE_TEAM_MONTHLY / STRIPE_PRICE_TEAM_YEARLY), point a Stripe webhook at <origin>/stripe/webhook for checkout.session.completed and customer.subscription.{created,updated,deleted}, and set STRIPE_WEBHOOK_SECRET. Checkout, cards, invoices and cancelling all happen on Stripe's hosted pages; the server only mirrors the subscription onto the workspace (through the webhook, and a direct sync when the browser lands back from Checkout, so local development works without a tunnel).

ADMIN_EMAILS (comma-separated) names the accounts that get the admin role, applied at signup, on email verification, and at boot — so you can name an admin before or after they have an account. This requires SMTP in production: an address only identifies someone once they have proven they own it, and without a mailer signup is open, so anyone could sign up as your address and take the role with it. A production instance without SMTP promotes nobody and warns at boot; set the role directly in the database if that is your setup. Admins get /admin: every canvas and account on the instance, and "view as", which hands them a real but read-only 15-minute session as that user. Being an admin does not widen canvas access itself: the gate in server/access.ts is shared with MCP, so a privileged read there would give every agent holding an admin's token the run of the instance. View-as sessions cannot write, cannot connect agents, and record who is behind them in session.impersonated_by.

Optional login against an external OIDC provider (Zitadel, Okta, Authentik, Keycloak, etc.), alongside email/password — not a replacement for it. Set OIDC_ISSUER, OIDC_CLIENT_ID, and OIDC_CLIENT_SECRET together to enable it; a partial set refuses to boot rather than run with SSO half-configured. OIDC_SCOPES (default openid email profile) and OIDC_PROVIDER_NAME (default SSO, shown on the login button — e.g. Zitadel) are optional. Signing in via SSO links to an existing email/password account when the emails match and the provider marks the email verified, and this works even on an instance with no SMTP configured, where a local account could otherwise never verify on its own. SSO alone never grants the admin role, even for an address listed in ADMIN_EMAILS — an IdP is not trusted as an admin-promotion source, only as an email-ownership check; promotion still requires the normal ADMIN_EMAILS path (verified signup, or syncAdmins at boot for an account SSO has since verified).

Env: see the OIDC block in .env.example.

Optional, alongside email/password and SSO. Create an OAuth client (Web application) in the Google Cloud console, add <BETTER_AUTH_URL>/api/auth/callback/google as an authorised redirect URI, and set GOOGLE_CLIENT_ID and GOOGLE_CLIENT_SECRET together (one without the other refuses to boot). The login page shows a "Sign in with Google" button whenever both are set. Account linking and admin promotion follow the same rules as SSO above; SIGNUP_EMAIL_DOMAINS applies to Google (and SSO) sign-ups exactly as it does to email/password.

Same shape as Google. Register an app in Microsoft Entra (App registrations, platform Web) with <BETTER_AUTH_URL>/api/auth/callback/microsoft as a redirect URI, create a client secret, and set MICROSOFT_CLIENT_ID and MICROSOFT_CLIENT_SECRET together. MICROSOFT_TENANT_ID (default common, any Microsoft account) can be organizations, consumers, or your tenant id to make the button an org-only door. Microsoft does not assert email ownership unless the app registration's ID token includes the email and verified_primary_email optional claims; without them a Microsoft sign-in still works but only links to an existing account that is already verified. Everything else (allowlist, admin promotion) follows the SSO rules above.

Two independent halves, documented in .env.example. For the web button, register a Services ID with Sign in with Apple enabled and <BETTER_AUTH_URL>/api/auth/callback/apple as a return URL, then set APPLE_CLIENT_ID (the Services ID) and APPLE_CLIENT_SECRET (the client-secret JWT signed with your Sign in with Apple key, which Apple caps at six months) together. For the iOS app, set APPLE_APP_BUNDLE_IDENTIFIER to the app's bundle id: the app shows the native Sign in with Apple button and posts the identity token Apple issues for that bundle id to /api/auth/sign-in/social, which the server verifies against Apple's keys. Apple only sends the person's name on their first sign-in, so the app forwards it then; a later sign-in from a fresh install leaves the name as stored. Linking and admin promotion follow the SSO rules above. Apple's "Hide My Email" addresses are on privaterelay.appleid.com, which SIGNUP_EMAIL_DOMAINS rejects unless listed.

The /mcp endpoint requires OAuth. Adding the server in Claude Code / Codex triggers the standard MCP OAuth flow: a browser window opens, you sign in to Doop and approve, and the client stores a bearer token. Every tool call then carries your identity — agent tasks show "for ⟨you⟩" in the Tasks panel, and presence tooltips name the owner. Unauthenticated calls get a 401 with WWW-Authenticate discovery pointers (/.well-known/oauth-authorization-server + oauth-protected-resource), which is what kicks off the flow. Dynamic client registration is enabled, so no manual client setup.

In production also set BETTER_AUTH_URL to the public origin — OAuth URLs are built on it.

The repo ships a production Dockerfile (client build + Chromium for frame screenshots). Any container host works; Railway/Fly are the least friction:

1. Create the app from this repo (both auto-detect the Dockerfile).
2. Add a managed Postgres and set DATABASE_URL. Don't skip this in real deployments — the PGlite fallback is embedded/single-process and only suits a single instance with a persistent volume mounted at /app/data.
3. Set BETTER_AUTH_SECRET (long random string) and BETTER_AUTH_URL (the public origin, e.g. https://doop.example.com). Extra allowed origins: TRUSTED_ORIGINS (comma-separated).
4. Health check: GET /healthz. The server trusts one proxy hop (trust proxy), so TLS termination at the platform edge works out of the box.

Local sanity check of the exact production image:

docker build -t doop .
docker run -p 4400:4400 -e BETTER_AUTH_URL=http://localhost:4400 -e BETTER_AUTH_SECRET=dev-only doop

The MCP endpoint (streamable HTTP, stateless) is at:

http://localhost:4300/mcp

Claude Code:

claude mcp add --transport http doop http://localhost:4300/mcp

Codex:

codex mcp add doop --url http://localhost:4300/mcp

Generic MCP config:

{ "mcpServers": { "doop": { "type": "http", "url": "http://localhost:4300/mcp" } } }

OpenCode takes Doop as a remote MCP server in opencode.json. An agent key in the header skips the browser sign-in:

{
  "$schema": "https://opencode.ai/config.json",
  "mcp": {
    "doop": {
      "type": "remote",
      "url": "http://localhost:4300/mcp",
      "headers": { "Authorization": "Bearer dpk_…" }
    }
  }
}

The OAuth flow above assumes a human at a browser to approve the connection. A headless client — a Mastra workflow, n8n, CI, any server-side agent framework — authenticates with an agent key instead: mint one under Settings → Agent keys and send it as a bearer header. The key acts as your account (same canvas access, same attribution) and is checked on every request, so revoking it in Settings cuts the agent off immediately.

{
  "mcpServers": {
    "doop": {
      "type": "http",
      "url": "http://localhost:4300/mcp",
      "headers": { "Authorization": "Bearer dpk_…" }
    }
  }
}

Then tell the agent something like:

Work on canvas <canvas-id> (shown in the top bar). Call get_canvas to see the existing frames. To design, create a frame with create_frame, then stream the design into it with append_frame_html in ~300–500 character chunks (start=true on the first, done=true on the last) so people watch it build up live. Complete HTML with inline CSS. After finishing, call get_frame_screenshot to see it, fix what looks wrong, and re-check. Pick an agent_name and reuse it on every call.

Screenshots render in your system Chrome/Chromium via puppeteer-core (set CHROME_PATH if it isn't auto-detected). Humans can hit the same renderer at GET /api/frames/:id/screenshot.png?scale=2. For website viewing/imports, setting CONTEXT_DEV_API_KEY makes Context.dev acquire the rendered HTML while Doop still sanitizes it and renders the preview locally; without the key, Doop navigates to the public page directly in Chromium.

Server-side import can't reach apps behind SSO or a VPN. The doop-sync snippet flips the capture to the user's browser: mint a write-only key in a canvas's Share dialog, drop one tag into the app —

<script async src="https://your-doop-origin/doop-sync.js?key=dk_…"></script>

— and every distinct screen people visit lands on that canvas as a frame (one row per app), imported once: a short grace window lets the first capture settle (scroll reveals, late images), then the frame freezes so later visits — different viewports, other users' data, open menus — never churn it. Deleting a frame re-imports it on the next visit; navigation counts keep accumulating regardless. Routes are normalized (/orders/8231 → /orders/:id) so each screen maps to one frame; captures are serialized from the CSSOM (so styled-components/emotion output survives), and same-origin webfonts and small images are inlined as data: URIs — fonts require CORS inside the sandboxed frame, and intranet URLs would never render for viewers outside the network. Scripts are stripped client- and server-side, input values are always dropped, and anything marked data-doop-mask is redacted before upload (data-doop-sync-ignore excludes an element entirely). The key is the whole credential: it can only write frames to its one canvas, so revoking it in the Share dialog cuts the app off instantly. Endpoint: POST /ingest/<key> (CORS-open, no cookies).

Agent HTML lands in the store immediately, but viewers see it through a typewriter reveal: the server broadcasts the accumulated HTML at a steady rate (~500 chars/s, accelerating to clear backlogs in ~8s), so even an agent that sends few large chunks — or a one-shot set_frame_html / create_frame with full HTML — plays back as a smooth live stream. Mid-reveal HTML is healed before broadcast: a trailing half-written tag is dropped, an unclosed <script> is cut (never run half-written JS), and an unclosed <style> is closed so content paints instead of blanking. Human edits from the inspector bypass the reveal (and a human html edit cancels any open reveal — the human takes over).

While a stream/reveal is open the frame gets a pulsing dashed border and a "✦ is designing…" chip; "finished designing" logs when the reveal completes. A stale stream auto-closes after 30s. There is also a REST equivalent: POST /api/frames/:id/append with { html_chunk, start?, done?, actor? }.

Steering happens at three layers (the same architecture paper.design uses, plus result nudges):

1. Server instructions at MCP initialize — a compact contract: load the guide, get context first, stream designs, review with screenshots, keep one agent_name.
2. get_guide tool — the deep playbook (mandatory review checkpoints, streaming workflow, frame sizing, design-quality doctrine, multiplayer etiquette), loaded once per session and re-loadable after context compaction. Source: server/guide.ts.
3. Result nudges — create_frame / set_frame_html / final append_frame_html results tell the agent it hasn't seen its design yet and to call get_frame_screenshot before moving on.

Mutating tools accept agent_name; the agent then appears in the presence stack (pulsing square avatar), gets an "editing" ring + chip on the frame it touched, and its actions land in the activity feed. Agents expire from presence after ~20s of inactivity (~60s while they have a posted status, since a status usually means the agent is thinking between tool calls).

Agent-to-human ownership comes from the OAuth token: the bearer token identifies who approved the connection, and that user shows up as the agent's owner in tasks and presence.

Agents are steered (instructions + guide) to call set_status with a one-line, present-tense summary when they start a task and whenever their focus shifts — e.g. "Sketching a mobile onboarding flow". Statuses appear in a floating working-now strip at the bottom-left of the canvas (pulsing dot in the agent's color), in the presence avatar tooltip, and as an activity feed entry, so you always know what each agent is doing even while it's silently thinking. An empty string clears the status; it also expires with the agent's presence.

Every status also becomes a task: posting a new status completes the previous one, clearing (or going silent) ends the open task. Agents that never call set_status still show up: the server infers a task from what they visibly do ("Designing 'Hero'", italicized in the panel), closes it when the stream finishes, and nudges them in tool results to start announcing — so the panel works even for sessions that connected before the tool existed or skipped the guide. The side panel is split into two tabs — Tasks shows the history per agent (active task pulsing with a running duration, finished ones checked off with how long they took), Cursor-agent-panel style; Activity is the raw event feed. Task history survives agents leaving and is sent to late joiners.

Hover any task in the Tasks tab and hit ↩ to leave feedback (e.g. "make the accent warmer"). Each note becomes an open request on the canvas — a work item, not mail for the agent whose task it was. MCP is pull-based, so delivery rides the result-nudge layer: the next identified agent call on the canvas that supports feedback delivery (carrying an agent_name, whoever it is) returns a HUMAN FEEDBACK block quoting the note, saying whose work it concerns, and instructing the agent to address it before continuing — including editing another agent's frame (a human request overrides the don't-touch etiquette). Picking it up claims it: the UI flips from "→ waiting for an agent…" to "✓ picked up by ⟨agent⟩", and each note is claimed exactly once.

Agents don't linger waiting for replies — sessions end when their work ends. Open requests simply wait for the next agent to show up: the original agent in a later session, a different agent already on the canvas, or a fresh one you spawn ("check in on canvas ⟨id⟩"). For a dedicated caretaker, point an agent at get_feedback — a non-blocking fetch-and-claim designed for a "check the canvas every few minutes, address whatever humans requested" loop. REST equivalent: POST /api/tasks/:id/feedback with { text, from }.

Call get_comments({ canvas_id }) to read the canvas's retained element comments and replies (up to 100 entries, newest first). Each entry includes its ID, frame ID, author, text, timestamp, CSS selector, HTML snippet, and any claim, failure, or resolution metadata. Replies carry a parentId pointing to their root comment.

Pass frame_id to read only comments on a frame belonging to that canvas, or include_resolved: false to exclude resolved entries. Resolved entries are included by default so conversation context remains available. An empty result is []. The tool enforces the same canvas access permissions as other MCP reads; optional agent_name announces presence. It does not claim task feedback or comments, or mark anything resolved.

reply_to_comment({ canvas_id, comment_id, text, agent_name }) adds a reply to a thread, inheriting the root's element anchor. resolve_comment({ canvas_id, comment_id, agent_name }) closes it, and resolving an @mention thread also records the exchange in canvas Memory. Both require the same canvas access as every other MCP tool. A reply whose text @mentions a resident role spends one resident task from the account's allowance — the same free-tier meter that a board card, an @mention comment, or task feedback consumes (server/allowance.ts); plain replies are free. resolve_comment also costs nothing.

An automation runs on a schedule (daily, weekdays or weekly, in any time zone) or when designs on a selected canvas are approved. Configure up to six steps at /automations. Approval presets make different sizes, localize designs, or create companion assets; edit the brief to choose dimensions, languages and deliverables. Generated designs start as drafts.

• Pull steps land designs on a canvas: Meta ad creatives (up to 200 ads, each with its image, name, copy and CTA; META_APP_ID/_SECRET, read-only ads_read scope).
• Agent steps queue a board card for one Doop Agent role, identical to a card a person writes, and billed to the automation's owner. Following steps wait until that card completes.
• Create Linear ticket uses the owner's connected Linear account and selected team. The connection needs permission to create issues.
• Post to Slack uses the owner's Slack installation and a channel ID. Invite @Doop to the destination channel. Both handoff actions include source design links and links produced by earlier steps.

Schedules are checked every minute; approvals and ongoing work every five seconds. One run per automation is active at a time. Up to ten approvals are grouped into each run, with each approval processed once, including after a restart or run-history cleanup. Enabling a workflow watches future approvals; Run now also picks up existing, unprocessed approvals. Changing an approved source to draft or needs review stops its remaining workflow steps. Agent work times out after one hour. Sizes, languages, and asset briefs are editable presets.

Every run has a summary or an actionable error. Interrupted external calls fail visibly instead of automatically repeating a possibly successful ticket or message. Check the destination before reapproving a design to start another run. Approval receipts are retained until the automation is deleted; completed run history is limited to 100 entries. Existing scheduled automations retain their schedules and now wait for agent completion between steps.

Types live in shared/automations.ts, the runner in server/automations.ts.

• Infinite canvas — wheel to pan, ⌘/ctrl + wheel (or pinch) to zoom, drag the background to pan, zoom-to-fit; dot grid tracks the viewport.
• Frames — drag to move, corner handle to resize, click to select. The right-hand inspector edits name/position/size and the raw HTML with debounced live saves. ⌫ deletes the selected frame.
• Multiplayer — live cursors with name tags, presence avatars, per-frame "who's editing" indicators, colored flash when a remote actor changes a frame, drag positions streamed live, auto-reconnect.
• Activity feed — every create/edit/rename/delete, by whom (user or agent), with timestamps.
• Sharing — the canvas URL is the share link (Share button copies it).
• Connect AI modal — copy-paste MCP setup instructions from the app itself.

server/          Node (tsx) — one process on :4400
  index.ts       Express REST API + ws rooms + presence + static serving (prod)
  store.ts       In-memory canvas/frame state (hot path), write-through to the DB
  db/            Drizzle schema + PGlite/Postgres connection + write-through persistence
  actions.ts     Shared mutations: broadcast + activity log + agent presence
  mcp.ts         MCP server (@modelcontextprotocol/sdk), stateless streamable HTTP at /mcp
  seed.ts        Demo canvas on first run
shared/types.ts  Store + ws protocol types shared by server and client
src/             React + Vite + zustand client on :4300
  components/ui/ The component system — every styled primitive lives here
  styles.css     Design tokens, the base reset, and keyframes. Nothing else.

Doop's look is a component system, not a stylesheet. src/components/ui/ holds the primitives — Button, Input, Badge, Card, Panel, Modal, Menu, Toolbar, Segmented, Dash* and the rest — each a Tailwind + CVA recipe bound to the tokens in styles.css. Screens compose those; they don't re-describe borders, shadows or type scales. If a pattern shows up twice, it belongs in ui/.

src/styles.css is deliberately small: the :root tokens (--ink, --paper, --brand…), their @theme inline mapping onto Tailwind names, the base reset, and the @keyframes utilities cannot express. Components reference those animations by name, so the names are API. --breakpoint-md (900px) is the mobile boundary and useIsMobile() matches it in JS — change them together.

Frame HTML renders in <iframe sandbox="allow-scripts"> — scripts run, but no same-origin access and no reach into the app. Each iframe loads a small bootstrap once; new HTML is postMessaged in and DOM-morphed in place (src/lib/frameRuntime.ts), so updates and streaming ticks never white-flash the frame with a full document reload. Changed <script>s re-execute; unchanged styles/fonts are untouched. The realtime layer is plain JSON over a per-canvas WebSocket room; REST/MCP mutations are broadcast to the room by the shared actions layer, so human and agent edits go through identical plumbing.

PRs welcome — see CONTRIBUTING.md for commit conventions and code style. bun run test runs the integration suite (it boots the real server against a throwaway database); schema changes go through drizzle migrations (npx drizzle-kit generate after editing server/db/schema.ts). Security issues: see SECURITY.md — please report privately.

Doop is open source under the GNU AGPL v3. In short: use it, self-host it, modify it — but if you offer a modified version as a service, you must publish your changes under the same license.

The doop name and logo are trademarks and are not covered by the code license — please rebrand derived services.
