A NuGet-package is available here.

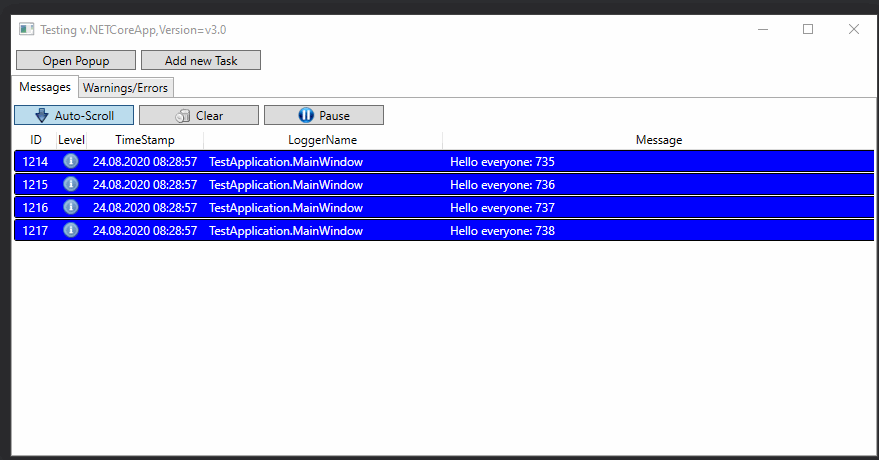

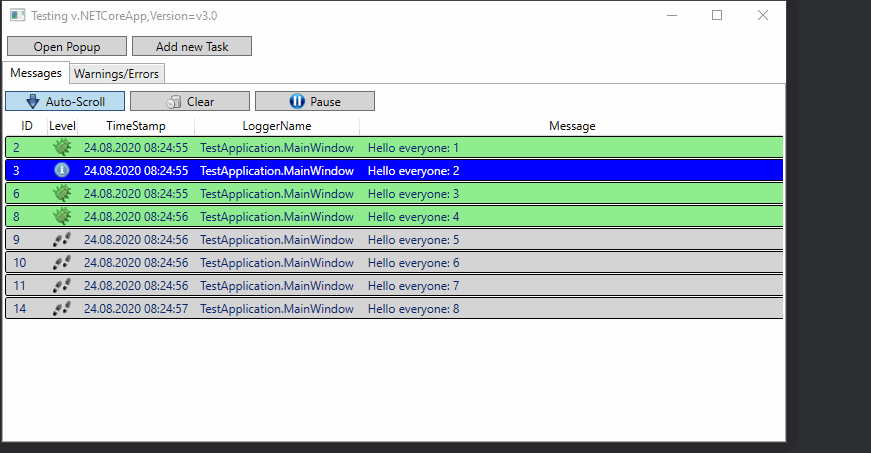

LogViewer is a ui control library to visualize NLog logs in your personal application. It is mainly based on Sentinel and its controls.

supported Framework: .NET8

GitHub Releases ship:

• MSI installer (Sentinel.LogViewer-<version>-win-x64.msi): installs under Program Files with a license dialog (MIT), Start Menu shortcut, and optional features (desktop shortcut, .log association) selectable in Custom setup. Silent install: msiexec /i Sentinel.LogViewer-<version>-win-x64.msi /qn (optional features with higher install level stay off unless you raise INSTALLLEVEL or use transforms).
• Portable ZIP (self-contained and framework-dependent): unpack and run Sentinel.LogViewer.exe from any folder; a NLogViewer.portable marker file directs settings to appsettings.json beside the app (see README-Portable.txt in the ZIP). Installed (MSI) copies keep using per-user %LocalAppData%\Sentinel.LogViewer\.

Build the installer locally (Windows): dotnet build installer/Sentinel.LogViewer.Installer.wixproj -c Release — output installer/bin/Release/Sentinel.LogViewer.msi.

Versioning: MSI, portable ZIPs, and NuGet packages always use GitVersion fullSemVer (for example 3.2.0-124-wix-installer-implementation-and-portable-versions.88 on a feature branch, or 3.2.0 on a release tag). The Chocolatey Community package is the only exception; it uses a flattened prerelease such as 3.2.0-dev0000000004001. See chocolatey/README.md.

Text log files: the application detects the separator and the columns of a text file (timestamp, level, logger, message), and File → Open File with Column Mapping lets you correct them. Timestamps are read in the common formats, also when date and time are separate columns or in English: 2025-12-18 15:11:48.385, 18.12.2025 15:11:48, 12/18/2025 3:11:48 PM, 18 Dec 2025 15:11:48, Thu Dec 18 15:11:48 2025 and syslog's Dec 18 15:11:48 (the year is taken from the file date). Whether a date like 01/02/2025 is day first or month first is read from the dates of the file (a day above 12 decides); when the file does not tell, the culture of the computer is used, and the Date order setting of the mapping dialog overrides it. The format of the timestamp column in the list is a setting and can be switched per tab with a right-click on the column.

Restarted applications: an application is told apart by its name and its sender (IP address). When it starts again, its new process opens a new tab by default; the setting After a restart of an application (Settings → Receiving) can also continue in the existing tab, or open a new tab and close the old one. A new tab takes over the filters of the last tab of the application (levels, filter terms, hidden loggers and the format of the timestamp column, not the search box) and says so, with a button to remove them. Both can be set for one application in the menu of its tab, the arrow ▾ in the tab header or a right-click.

Filter presets: Filter → Save current filter as preset saves the filters of the selected tab under a name: the level buttons, the filter terms with their options, the fields they look into and the hidden loggers (the format of the time stamp is not part of it). Filter → Apply preset sets all of them on the selected tab at once. Saving under the name of an existing preset asks whether to replace it. Filter → Manage presets (Settings → Filter presets) renames and removes presets. The presets are part of the settings, so they survive a restart and are exported and imported with them. Applying a preset does not change the fields that new tabs start with.

Status bar: on the left it shows whether the application receives logs (Listening · 2 of 3 sources); the button next to it starts or stops all sources, also in the Logs menu. Clicking the state opens a panel above the status bar with every source, its state, its number of entries, the time of its last entry and a switch to turn it on or off; a source that could not be started says why (for example which process uses the port) and offers Try again. Manage sources... opens the addresses in the settings; a right click on the state lists the sources to switch on and off. In the middle it summarizes the selected tab: its entries and, when it has a filter, how many are shown and what filters them, with Reset filter. Hints and errors appear as a small card at the bottom right: a hint goes away by itself, an error stays until it is closed.

TCP, ignored senders and tab colours: the addresses in Settings → Receiving can be udp://0.0.0.0:4000 or tcp://0.0.0.0:4000; several clients can be connected to a TCP port, and an event that arrives in pieces is put together before it is parsed. UDP and TCP can use the same number. Under Ignored senders (same page) a rule has an IP address, an application name or both (then both have to match); logs that match are dropped when they arrive, whichever way they come. The menu of a tab (the arrow in its header or a right click) has Ignore this application (from this IP address), Ignore this application (from any IP address) and Ignore this IP address, which add the rule and close the tabs it matches. An application that tells its machine name (NB1 (10.0.0.5)) is matched by its IP address. Every tab of an application that sends logs has a colour in its header that is computed from the name and the IP address, so it is the same after a restart of the viewer or of the application.

Changelog: after an update the application opens the changelog once, with everything that changed since the version you used before; Help → About → What’s new opens it at any time. It lists the release notes of all versions, can be searched, and is kept on disk so it is also available without a connection. Showing it after an update can be switched off under Settings → Updates.

Add the following NuGet package reference to your project:

<PackageReference Include="Sentinel.LogViewer.Wpf" Version="[version]" />

In your App.xaml, add the LogViewer theme and styles:

<Application x:Class="YourApp.App"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:xamlConverter="clr-namespace:Sentinel.LogViewer.Wpf.XamlConverter;assembly=Sentinel.LogViewer.Wpf"
             xmlns:xamlMultiValueConverter="clr-namespace:Sentinel.LogViewer.Wpf.XamlMultiValueConverter;assembly=Sentinel.LogViewer.Wpf"
             StartupUri="MainWindow.xaml">
    <Application.Resources>
        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <!-- LogViewer Theme -->
                <ResourceDictionary Source="pack://application:,,,/Sentinel.LogViewer.Wpf;component/Themes/Generic.xaml"/>
            </ResourceDictionary.MergedDictionaries>
        </ResourceDictionary>
    </Application.Resources>
</Application>

Add the namespace and use the control in your XAML:

<Window x:Class="YourApp.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:dj="clr-namespace:Sentinel.LogViewer.Wpf;assembly=Sentinel.LogViewer.Wpf">
    <Grid>
        <dj:LogViewer />
    </Grid>
</Window>

LogViewer is subscribing to CacheTarget. By default, the LogViewer is automatically creating a CacheTarget with loggingPattern "*" and LogLevel "Trace".

If you want to customize the loggingPattern and LogLevel, add the following to your Nlog.config.

<?xml version="1.0" encoding="utf-8" ?>
<nlog
  xmlns="http://www.nlog-project.org/schemas/NLog.xsd"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://www.nlog-project.org/schemas/NLog.xsd NLog.xsd"
  autoReload="true">

  <extensions>
    <add assembly="Sentinel.LogViewer.Wpf" />
  </extensions>

  <targets async="true">
    <target
      xsi:type="CacheTarget"
      name="cache"/>
  </targets>

  <rules>
    <logger name="*" writeTo="cache" minlevel="Debug"/>
  </rules>
</nlog>

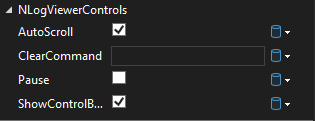

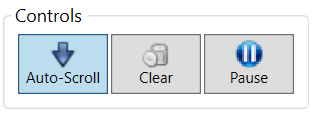

The LogViewer includes control buttons that allow you to manage log viewing behavior. The control buttons are organized in a GroupBox and can be controlled programmatically.

Control Properties:

• AutoScroll - Automatically scroll to the newest log entry when new entries are added
• ClearCommand - Command to clear all log entries from the viewer
• Pause - Pause or resume logging to improve performance when not actively monitoring
• ShowControlButtons - Controls the visibility of the entire control button group

Usage:

// Control auto-scroll behavior
logViewer.AutoScroll = true;  // Enable auto-scroll
logViewer.AutoScroll = false; // Disable auto-scroll

// Pause/resume logging
logViewer.Pause = true;  // Pause logging
logViewer.Pause = false; // Resume logging

// Hide the entire control button group
logViewer.ShowControlButtons = false;

XAML Binding:

<dj:LogViewer
    AutoScroll="{Binding IsAutoScrollEnabled}"
    Pause="{Binding IsLoggingPaused}"
    ShowControlButtons="{Binding ShowControls}" />

Control Logic:

• AutoScroll automatically scrolls to the bottom when new log entries are added
• ClearCommand removes all log entries from the viewer
• Pause stops listening for new log events to improve performance
• The entire control group can be hidden using ShowControlButtons = false

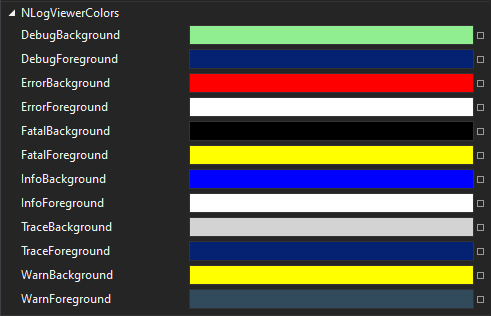

Customize foreground or background of every logLevel

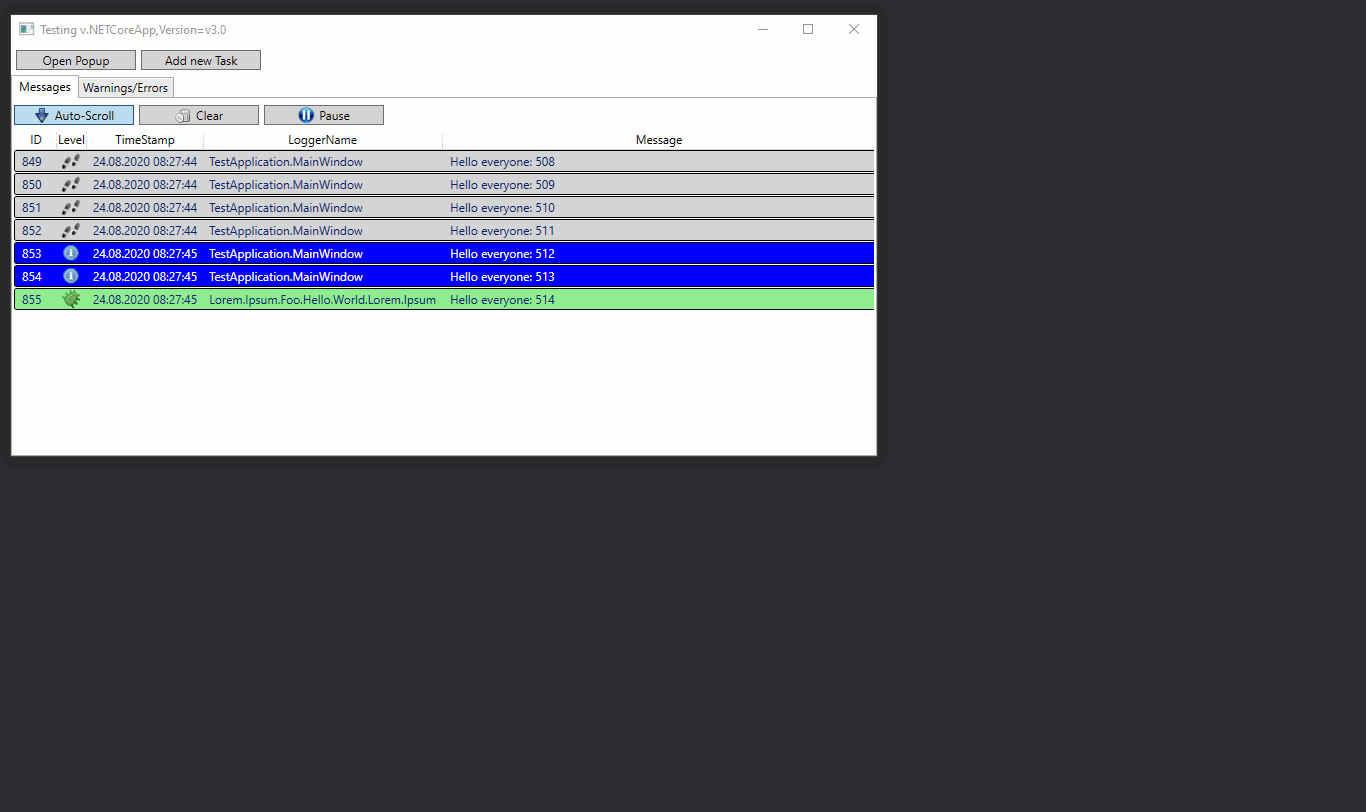

Use more than one instance of LogViewer to match different rules.

Create 2 targets with their own rules.

<targets async="true">
  <target xsi:type="CacheTarget" name="target1"/>
  <target xsi:type="CacheTarget" name="target2"/>
</targets>

<rules>
  <logger name="*" writeTo="target1" maxlevel="Info"/>
  <logger name="*" writeTo="target2" minlevel="Warn"/>
</rules>

Set TargetName property to link them.

<dj:LogViewer TargetName="target1"/>
<dj:LogViewer TargetName="target2"/>

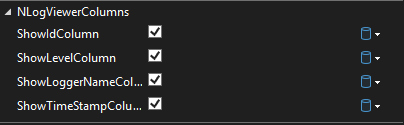

Control which columns are visible in the LogViewer. You can dynamically show or hide individual columns using the provided Dependency Properties.

Available column visibility properties:

• ShowIdColumn - Controls ID column visibility
• ShowLevelColumn - Controls Level column visibility
• ShowTimeStampColumn - Controls TimeStamp column visibility
• ShowLoggerNameColumn - Controls LoggerName column visibility
• Message column is always visible (no control available)

Usage:

// Hide specific columns
logViewer.ShowIdColumn = false;
logViewer.ShowLevelColumn = false;

// Show columns again
logViewer.ShowIdColumn = true;
logViewer.ShowLevelColumn = true;

XAML Binding:

<dj:LogViewer ShowIdColumn="{Binding IsIdColumnVisible}" ShowLevelColumn="{Binding IsLevelColumnVisible}" />

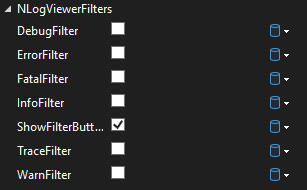

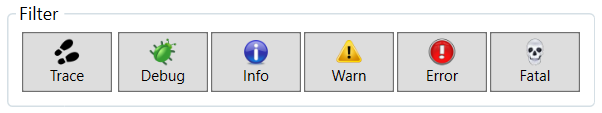

The LogViewer includes filter buttons that allow you to hide/show specific log levels. The filter buttons are organized in a GroupBox and can be controlled programmatically.

Filter Properties:

• TraceFilter - Hide/show Trace level log entries
• DebugFilter - Hide/show Debug level log entries
• InfoFilter - Hide/show Info level log entries
• WarnFilter - Hide/show Warn level log entries
• ErrorFilter - Hide/show Error level log entries
• FatalFilter - Hide/show Fatal level log entries
• ShowFilterButtons - Controls the visibility of the entire filter button group

Usage:

// Hide specific log levels
logViewer.TraceFilter = true;  // Hide Trace entries
logViewer.DebugFilter = true;  // Hide Debug entries
logViewer.InfoFilter = true;   // Hide Info entries

// Show log levels again
logViewer.TraceFilter = false; // Show Trace entries
logViewer.DebugFilter = false; // Show Debug entries

// Hide the entire filter button group
logViewer.ShowFilterButtons = false;

XAML Binding:

<dj:LogViewer
    TraceFilter="{Binding HideTraceLogs}"
    DebugFilter="{Binding HideDebugLogs}"
    ShowFilterButtons="{Binding ShowFilters}" />

Filter Logic:

• When a filter property is set to true, entries of that log level are hidden
• When a filter property is set to false, entries of that log level are shown
• The filter buttons are ToggleButtons that automatically bind to these properties
• The entire filter group can be hidden using ShowFilterButtons = false

The Filter hides the entries that do not match its terms; the Search finds entries without hiding any (Enter / F3 and Shift+Enter / Shift+F3 jump to the next and the previous hit, the hits are highlighted and counted). Both use the same matching, so they offer the same options:

• Match case and Whole word
• Regex - full .NET regular expressions; a pattern that is not valid gets a red frame and the reason is shown next to the box (the filter adds nothing, the search finds nothing)
• Level - the term only matches entries of that level
• Patterns - a menu of ready-made regular expressions (date, GUID, IPv4 address, URL, e-mail address, HTTP error status, exception type, one of several words) that are put into the box
• Fields - where to look: message, logger name, exception, thread and the other properties of the entry (default: message and logger name). The choice counts for the filter and the search together.

The filter also has Show / Hide: a term that hides removes the entries that match it. Every term is shown as a chip (an − in front of the ones that hide, Aa for match case, W for whole word, the level) that can be edited or removed. The filter shows how many of the entries it would match while you type.

All terms of the filter have to allow an entry (AND); a term that includes must match, a term that excludes must not.

In the desktop application the fields are a setting (Settings → Appearance → Search and filter) that new tabs start with. Choosing other fields in a tab saves them as the setting; tabs that are open stay as they are.

Properties of the filter:

• CurrentSearchText - The text in the filter box
• UseRegexSearch, FilterMatchCase, FilterWholeWord, FilterIsExclude, FilterLevel - The options of the next term
• FilterError - Why the text is not valid (read-only, null when it is), FilterHitText - e.g. "12 hits" (read-only)
• ActiveSearchTerms - The terms (FilterTerm), read-only
• SearchHighlightBackground - Brush used to highlight matched text

Properties of the search:

• FindText, FindUseRegex, FindMatchCase, FindWholeWord, FindLevel - The text and its options
• FindError, FindResultText - Why the text is not valid, and the count of the hits (read-only)
• ShowFindControls - Whether the search is shown

Property of both:

• SearchFields - The fields to look into (SearchFields, a combination of Message, LoggerName, Exception, Thread and Properties; default Message | LoggerName)

Usage:

// Add a term that includes: entries whose message or logger contains "error", whole words only
logViewer.CurrentSearchText = "error";
logViewer.FilterWholeWord = true;
logViewer.AddSearchTerm();

// Add a regex that hides the entries it matches
logViewer.UseRegexSearch = true;
logViewer.FilterIsExclude = true;
logViewer.CurrentSearchText = @"\d{4}-\d{2}-\d{2}";
logViewer.AddSearchTerm();

// Add a term without the input: includes, or hides, a plain text
logViewer.AddRegexSearchTerm("timeout");
logViewer.AddRegexSearchTermExclude("heartbeat");

// Remove a term, or all of them
logViewer.RemoveSearchTerm(logViewer.ActiveSearchTerms.First());
logViewer.ClearAllSearchTerms();

// Look into the exception and the other properties as well
logViewer.SearchFields = SearchFields.All;

// Find without hiding anything
logViewer.FindText = "timeout";
logViewer.FindMatchCase = true;

XAML Binding:

<dj:LogViewer
    CurrentSearchText="{Binding SearchText}"
    UseRegexSearch="{Binding IsRegexMode}"
    SearchFields="{Binding SearchFields, Mode=TwoWay}"
    SearchHighlightBackground="{Binding HighlightBrush}" />

Matching:

• A text matches when an entry contains it in one of the chosen fields; without Regex it is a plain text, not a pattern
• The Message field is the message of the entry; the exception is a field of its own
• Whole word means that no letter, digit or underscore stands right before or after the match
• With a level, the entry has to be of exactly that level
• The matching code is FilterTerm in Sentinel.LogViewer.Core, so a server or another user interface can filter in the same way

The loggers of the entries are shown as a tree on the right of the list, split at the dots of their names (Company → Product → Service). Open it with the Loggers button on the right edge of the list.

Features:

• A check box per logger shows or hides that logger and everything below it; a partly checked box means some of the loggers below are hidden
• Per logger: number of entries, plus counters for warnings and for errors and fatal errors; they update while entries arrive
• Right-click a logger: Show only this logger, Show all loggers, Expand all, Collapse all
• Right-click a logger name in the list: Show only this logger, Hide this logger (the same rules; ShowOnlyLoggerCommand and HideLoggerCommand take the logger name)
• A search box above the tree lists the loggers that contain the text
• Drag the splitter between the list and the tree to change its width; the arrow button in the header moves the tree to the other side of the list
• Hidden loggers work together with the level buttons and the filter terms; an entry is shown only if all of them allow it

In the desktop application the side, whether the tree is open and its width are settings (Settings → Appearance) that new tabs start with. Moving the tree, opening it or dragging the splitter in a tab saves the new value as the setting; tabs that are open stay as they are. The control itself only has the properties below, which the application hands over.

Logger Tree Properties:

• ShowLoggerTree - Whether the tree can be opened (default true)
• IsLoggerTreeExpanded - Whether the tree is open (default false)
• LoggerTreeWidth - Width of the open tree (default 260, at least 140); it also follows the splitter
• IsLoggerTreeOnLeft - Whether the tree is on the left of the list instead of the right (default false)
• LoggerFilterRules - The hidden and shown loggers as text, to save and restore them
• LoggerTree - The tree itself with its nodes, counters and commands

LoggerFilterRules holds one rule per entry: -Company.Product hides that logger and everything below it, +Company.Product.Service shows one of them again; the most specific rule wins. - alone stands for all loggers. Rules also work for loggers that did not log anything yet.

logViewer.IsLoggerTreeExpanded = true;

// Hide a logger and everything below it, except one logger
logViewer.LoggerFilterRules = new[] { "-Company.Product", "+Company.Product.Service" };

// Save and restore the state
var saved = logViewer.LoggerFilterRules;

The timestamp column shows the time with date and milliseconds in one of four formats of a fixed width:

Right-click the header or a cell of the timestamp column to switch the format of that viewer; Default view goes back to the default.

• DefaultTimeStampFormat - The format of all viewers that have no choice of their own
• CustomTimeStampFormat - The format of this viewer, or null to follow the default
• EffectiveTimeStampFormat - The format that is shown (read-only)
• CanChangeTimeStampFormat - false while you use a TimeStampResolver of your own; the menu is then disabled and your resolver is left alone

LogViewer is built as a CustomControl with theming support:

Architecture:

• CustomControl Base Class - Enables proper theming and styling
• RelayCommand System - MVVM-compatible command system
• Theme Support - Full support for custom themes through resource dictionaries
• Code Organization - Separation of concerns between UI and logic

To format the output of a LogEntry, implement a new instance of ILogEntryResolver and bind it to the Resolver you want to customize:

/// <summary>
/// Reformat the DateTime
/// </summary>
public class FooTimeStampResolver : ILogEntryResolver
{
    public string Resolve(LogEntry logEntry)
    {
        return logEntry.TimeStamp.ToUniversalTime().ToString();
    }
}

LogViewer1.TimeStampResolver = new FooTimeStampResolver();

The viewer shows LogEntry objects (package Sentinel.LogViewer.Core), which do not depend on a logging library:

• Level - LogEntryLevel: Trace, Debug, Info, Warn, Error, Fatal (ordered, so entry.Level >= LogEntryLevel.Error works)
• LoggerName, Message - the message as it is shown, with its parameters filled in
• TimeStamp, Id - the time, and a growing number that a source can replace (e.g. the line of a file)
• Exception - the exception as text, null when there is none
• Properties - further values by name (thread, class, the fields of a JSON line)

Events of NLog are turned into entries by NLogEntryConverter.ToLogEntry(logEventInfo); the CacheTarget does this for you. If you push entries into the viewer yourself (ItemsSource), create LogEntry objects:

LogViewer1.ItemsSource = new ObservableCollection<LogEntry>
{
    new LogEntry(LogEntryLevel.Info, "Acme.Shop", "Order created") { Properties = new Dictionary<string, object?> { ["Thread"] = "worker-1" } }
};

Migrating from LogEventInfo: ItemsSource takes ObservableCollection<LogEntry>, ILogEventInfoResolver is now ILogEntryResolver (its Resolve takes a LogEntry), ILogEventResolverToStringConverter is now ILogEntryResolverToStringConverter, ICacheTarget is now ILogSource (Cache is Entries, an IObservable<LogEntry>), the CacheTarget property of LogViewer is Source, LogViewerBase is part of LogViewer, and FormattedMessage is Message, SequenceID is Id and Level is a LogEntryLevel instead of an NLog LogLevel.

The package Sentinel.LogViewer.Core targets plain net8.0 and has no WPF in it, so a server or another kind of user interface can use it too. The Sentinel.LogViewer.Wpf package brings it along. It holds:

• LogEntry, LogEntryLevel and ILogSource, and LogBuffer, a source that keeps the last entries in memory and sends them to every new subscriber
• the filters as a value (LogViewerFilterState), the filter term with its options and the fields it looks into (FilterTerm, SearchFields) and the format of the time stamp (TimeStampFormat)
• the logger tree as a model (LoggerTree, LoggerNode, LoggerVisibilityRules)
• the receiving of log messages over UDP (UdpLogReceiverService) with the Log4J XML parser (Log4JEventParser, Log4JEvent)

There is one control, LogViewer. Its entries come from one of these, in this order:

1. ItemsSource - a collection of LogEntry that you fill yourself (the desktop application does this).
2. Source - an ILogSource, anything that produces LogEntry objects.
3. The logging of NLog - without either of them the viewer shows the logging of the application through a CacheTarget (see above), so dropping <dj:LogViewer /> into a window is enough. TargetName picks one of several CacheTargets.

An ILogSource (package Sentinel.LogViewer.Core) has one member, an observable of the entries. A source that keeps entries sends the ones it holds to every new subscriber first, so a viewer that comes back gets the whole log. CacheTarget is such a source.

public class MySource : ILogSource
{
    private readonly ReplaySubject<LogEntry> _entries = new(bufferSize: 1000);

    public IObservable<LogEntry> Entries => _entries;

    public void Add(LogEntry entry) => _entries.OnNext(entry);
}

LogViewer1.Source = new MySource();

The viewer subscribes to its source every time it is loaded and ends the subscription when it is unloaded, so it keeps working when a tab or a docking panel takes it out of the window and puts it back (Issue #109). While Pause is on it does not listen. Each time it subscribes it shows what the source holds, without showing entries twice.

StartListen() and StopListen() are there for the cases that the viewer cannot see, e.g. a docking system that keeps the control in the window but hides it. They are safe to call several times, and StartListen() does nothing when the entries come from an ItemsSource.

logViewer.StopListen();   // e.g. when the panel is hidden
logViewer.StartListen();  // and when it is shown again

Create a new Window and add a default LogViewer

<dj:LogViewer TargetName="target1"/>

Open the new Window

TestPopup popup = new TestPopup();
popup.Show();

Below is a sample how you could create a LogViewer for a task

// create unique target name
var taskNumber = _RandomTaskCounter++;
string targetName = $"task{taskNumber}";
// create a unique logger
var loggerName = $"MyFoo.Logger.{taskNumber}";
var logger = LogManager.GetLogger(loggerName);

// create new CacheTarget
CacheTarget target = new CacheTarget
{
    Name = targetName
};

// get config // https://stackoverflow.com/a/3603571/6229375
var config = LogManager.Configuration;

// add target
config.AddTarget(targetName, target);

// create a logging rule for the new logger
LoggingRule loggingRule = new LoggingRule(loggerName, LogLevel.Trace, target);

// add the logger to the existing configuration
config.LoggingRules.Add(loggingRule);

// reassign config back to NLog
LogManager.Configuration = config;

// create a new LogViewer Control with the unique logger target name
LogViewer logViewer = new LogViewer
{
    TargetName = targetName,
};

// add it to the tab control
var tabItem = new TabItem { Header = $"Task {taskNumber}", Content = logViewer };
TabControl1.Items.Add(tabItem);
TabControl1.SelectedItem = tabItem;

// create task which produces some output
var task = new Task(async () =>
{
    while (true)
    {
        logger.Info($"Hello from task nr. {taskNumber}. It's {DateTime.Now.ToLongTimeString()}");
        await Task.Delay(1000);
    }
});

There is already a LogViewerTarget, which is used for Sentinel. See here

<target
    xsi:type="LogViewer"
    name="sentinel"
    address="udp://127.0.0.1:9999"/>

Feel free to make a PullRequest or open an Issue to extend this library!
